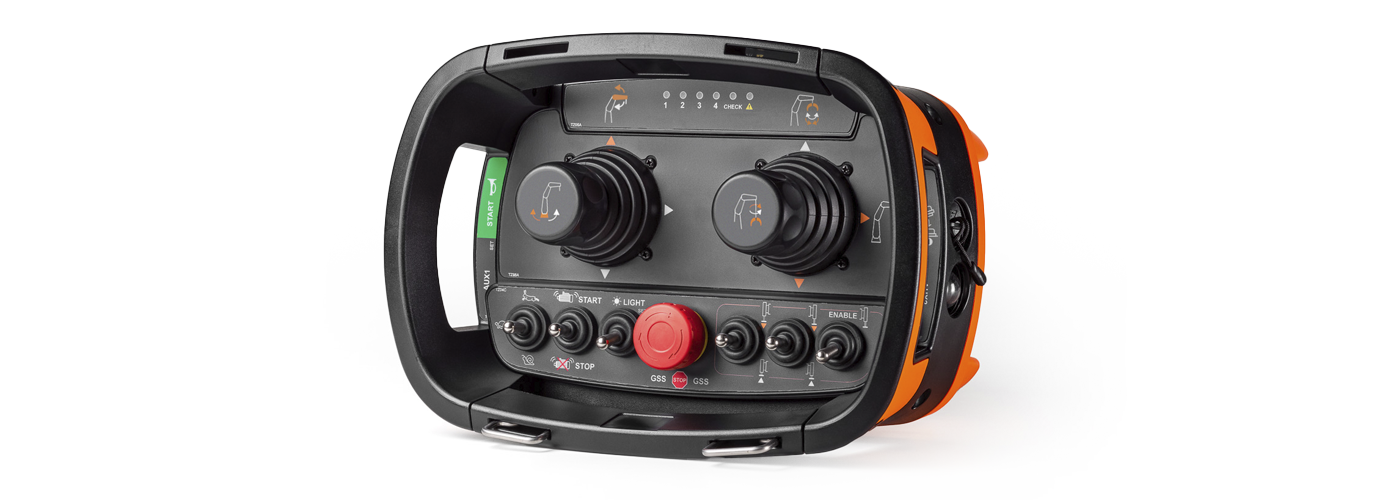

VEDO
Waist portable Radiocontrol - CCS
VEDO is the new Waist portable radio control from ELCA.
Its high configurability allows numerous types of actuators to be accommodated on 3 different positions: “on-top”, two-level, and side controls.
A magnetic “CONTACTLESS” hardware key (PIN ID available) and CANBUS, PROFIBUS, PROFINET, ETHERNET programmable outputs are provided.
General Safe Stop (GSS) - PL d cat.3 EN ISO 13849-1 easy to reach and activate in case of need.
Interchangeable Lithium battery located on the bottom of the control panel (made of orange-black ABS).
New option: graphic DISPLAY with CODESYS (IEC 61131-3 compliant). Also new are the customisable colour graphics and the quick coupling
system to the ventral belt, specially designed for optimum user comfort.
The perimeter protection ensures against accidental activation of the controls and allows comfortable support during control.
Applications: Machines for lifting and handling materials, objects, loads in general (overhead cranes, lifting cranes, etc.).
Electronics: E, BRAVO.
Highlights
HANDLE GRIP IN COUPLES
Modular, 360° protection, handle grip in couples symmetric parts fast to be repaired (single pieces), massive waste’s reduction.
OPTION GRAPHIC DISPLAY
Licensed CODESYS software (IEC 61131-3 compliant)
ROBUST
Black/orange ABS hull withstands shocks and harsh conditions.
MAGNETIC KEY
Magnetic “CONTACTLESS” hardware key ID PIN (available)
IF DESIGN AWARD
In 2025, VEDO design excellence was awarded the prestigious IF Design Award.
The kit includes
Transmitting Unit | Receiving Unit | 2 Batteries | Battery charger | User Manual: Transmitting Unit, Receiving Unit | Charging cable | Accessories.
Wiring on request.
Applications served
Actuators available
Stop
Stable toggle switche
Rotary selector
Unstable toggle switche
single speed button
Potentiometer
Led
Proportional joystick
Joystick on-off
Proportional linear joystick
Anzeige
Magnetic contactless hardware key
