BRAVO D

BRAVO electronics

Advanced Proportional Control: Provides flexible outputs for every type of actuation, supporting both standard digital outputs (up to 2 A) and proportional current outputs (PWM up to 2 A) and voltage outputs (up to 10 mA) for smooth, progressive movement.

The BRAVO-D Receiving Unit also features a CanOpen Slave 2.0 fieldbus interface.

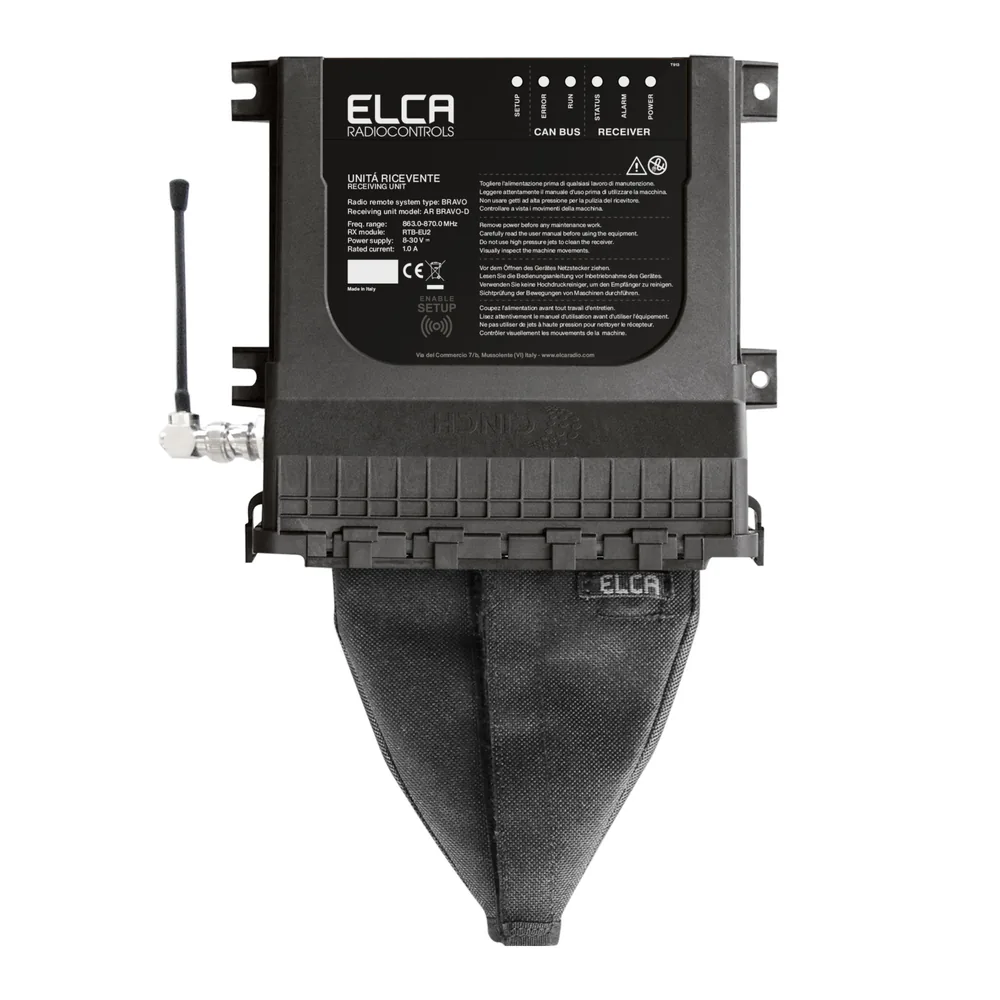

It incorporates high-visibility LED status indicators (Setup, Error, Run, Status, Alarm, Power).

Safety (PL e): Designed to meet the most stringent requirements, it incorporates a highly reliable STOP circuit up to PL e in accordance with ISO 13849-1 (Performance Level e), supported by rugged dedicated 7,5 A protection fuses.

Advanced Proportional Control: Provides flexible outputs for every type of actuation, supporting both standard digital outputs (up to 2 A) and proportional current outputs (PWM up to 2 A) and voltage outputs (up to 10 mA) for smooth, progressive movement.

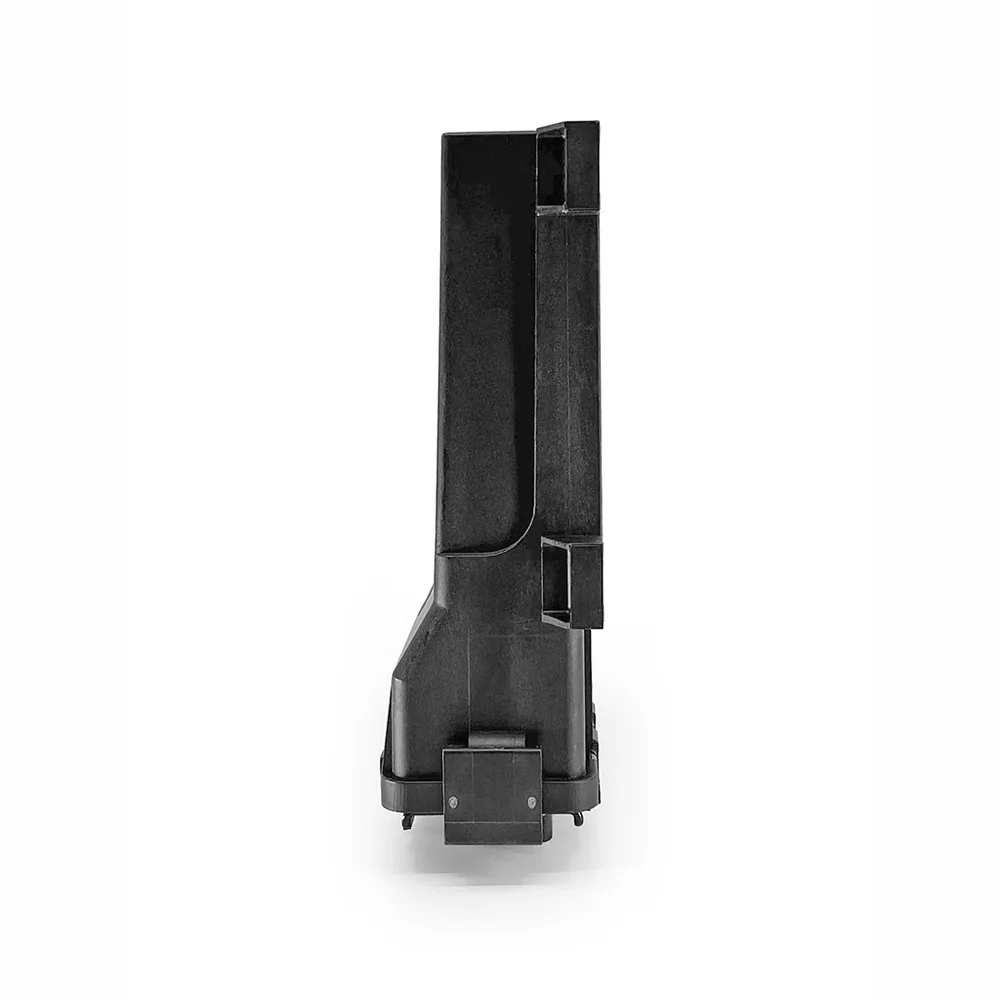

IP67 Protection Rating: Housed in an ultra-rugged enclosure with optimized dimensions (210x183x60 mm) and weighing 1200 g, the unit provides complete protection against water and remains fully operational even during temporary immersion.

External Antenna and Protected Wiring: Supplied as standard with an adjustable external antenna for maximum radio range. The system includes a protective cover that shields the outgoing wiring from dust and mechanical stress.

Main options
  • Power supply: 8-30 Vdc;
  • 18 digital outputs, 6 PWM/analog outputs, and 2 analog outputs, or up to 28 digital outputs (programmable START);
  • Outputs for dedicated SAFETY, STOP1, and STOP2 functions;
  • 3 digital feedback inputs;
  • CanOpen Slave 2.0 fieldbus interface;
  • Maximum permitted voltage: 30 Vdc;
  • Maximum rating of ON/OFF command outputs: 2 A;
  • Maximum rating of proportional current outputs (PWM): 2 A;
  • Maximum rating of proportional voltage outputs: 10 mA;
  • STOP contact protection fuses: 7.5 A;
  • Stop protection (in accordance with ISO 13849-1): up to PL e;
  • Serial communication interface (with optional connector) for direct wired connection to the transmitting unit;
  • Antenna: external (optional antenna kit with coaxial cable);
  • Wired output with multicore cable and free connector, or customized output;
  • Protection rating: IP67;
  • Dimensions: 210x183x60 mm;
  • Weight: 1200 g.
