E MAXI A
Available electronics: E1 - E2 - E29
MIA

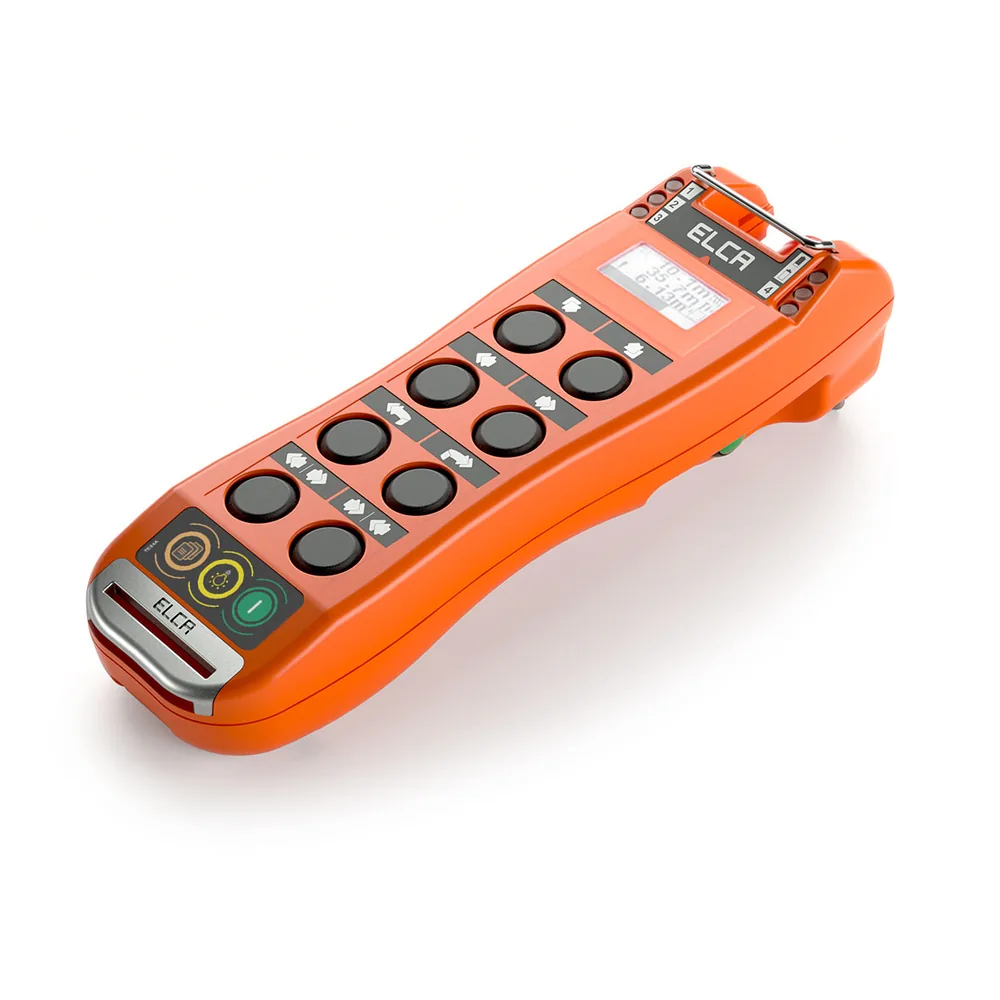

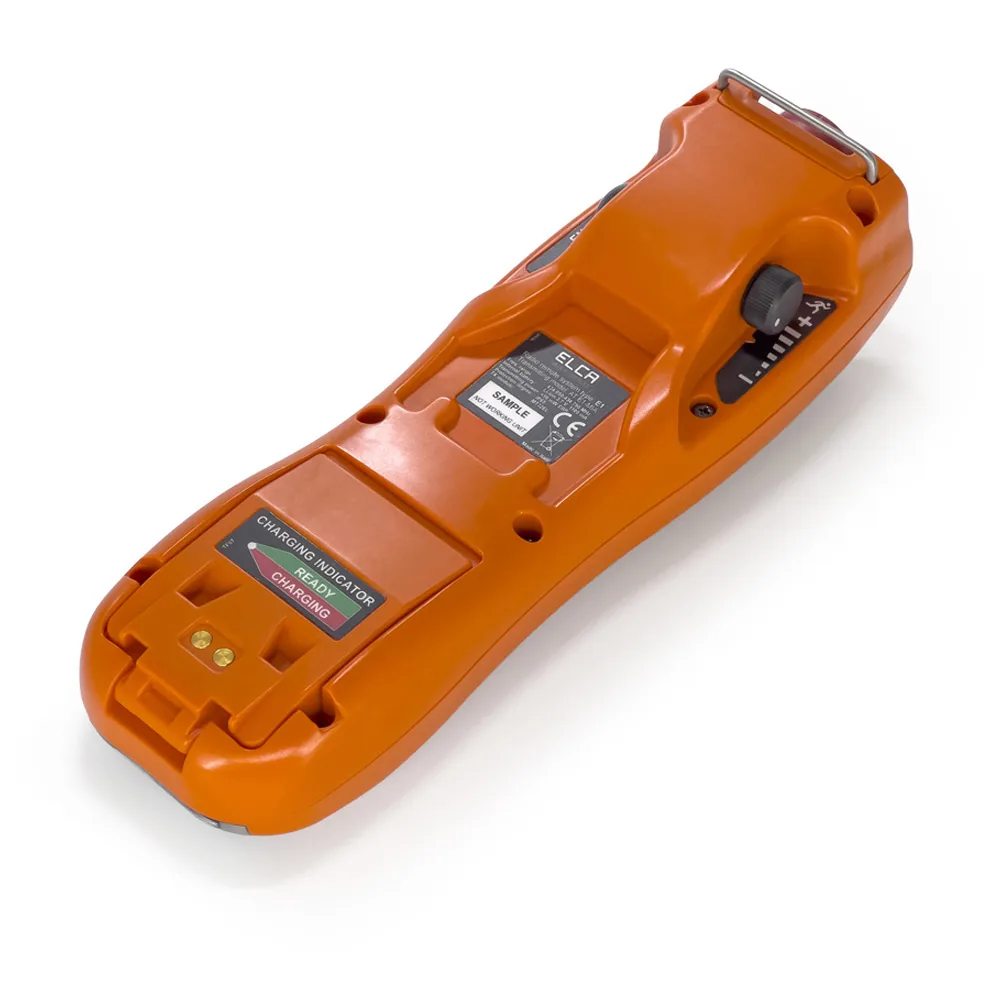

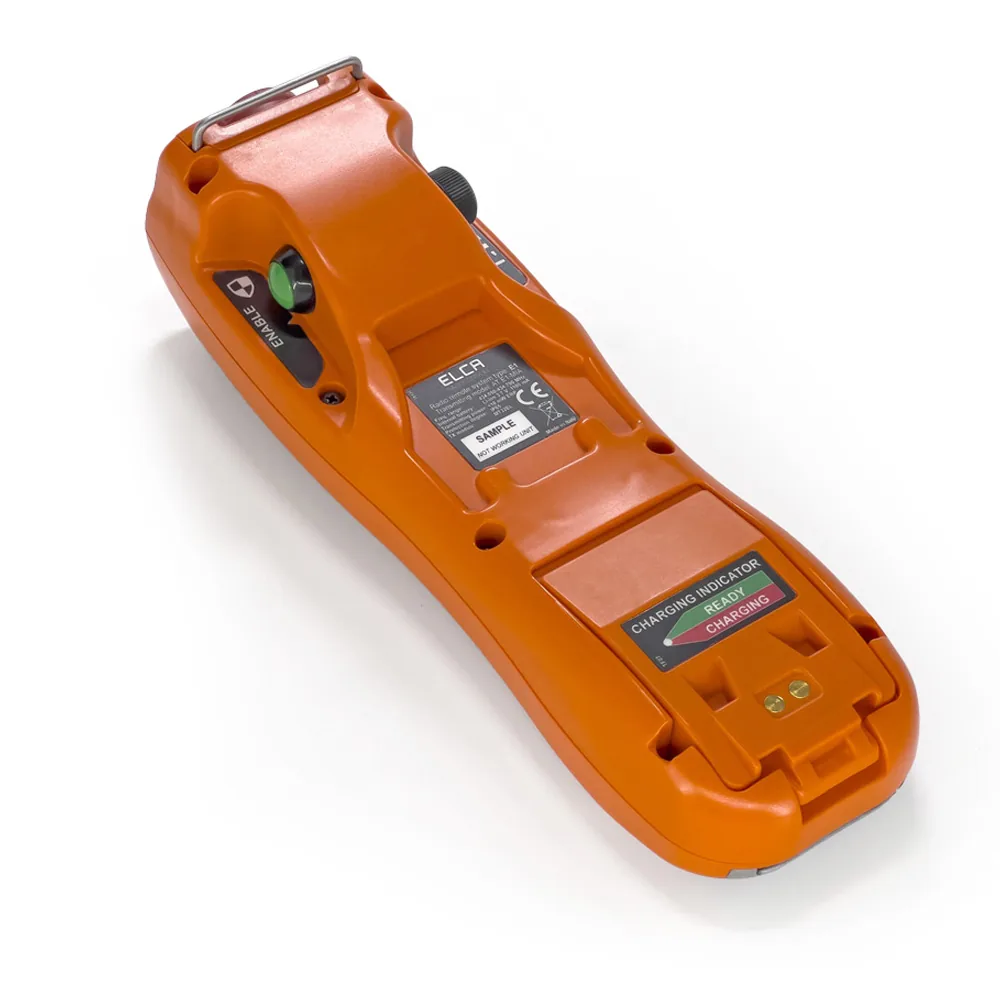

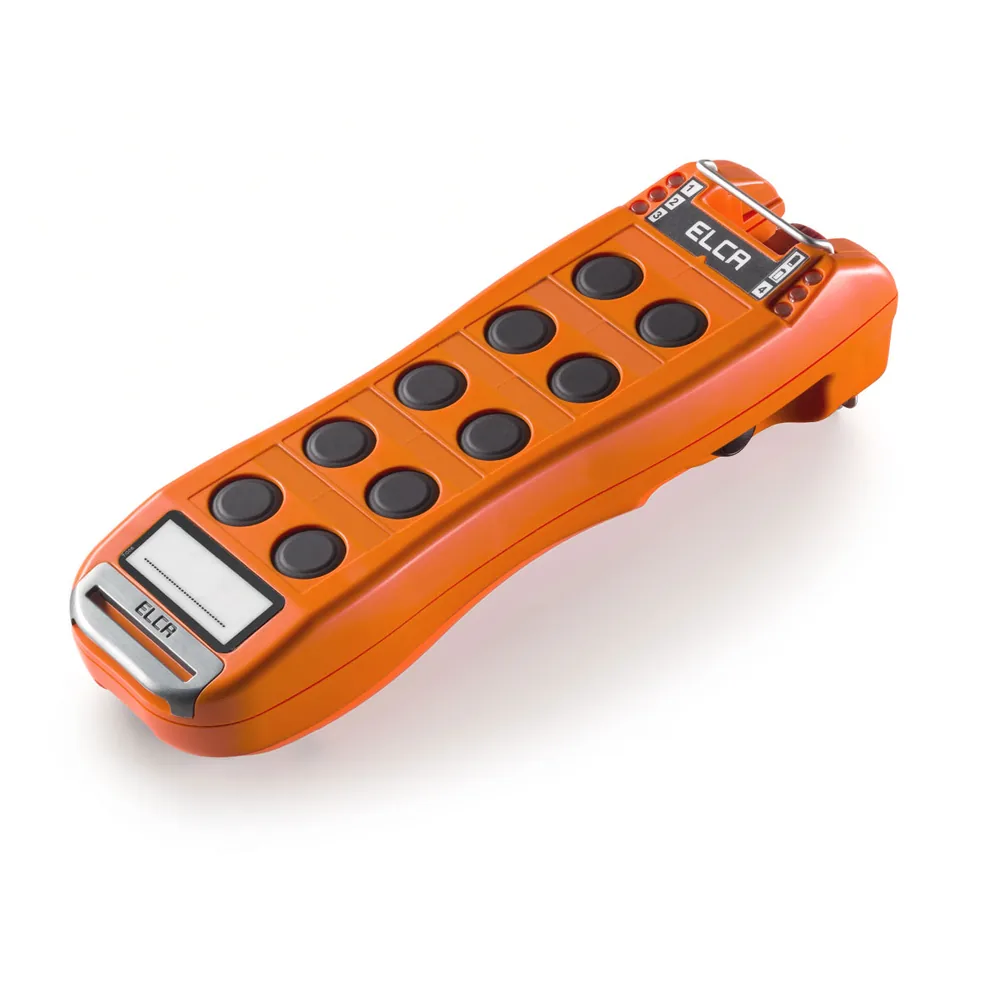

Handheld transmitter
MIA industrial safety handheld radio control with 10 two-step pushbuttons, 2 programmable single-step pushbuttons, Start and Stop.
Options: 1-0-1 toggle switch, side pushbuttons, potentiometer, graphic data display, and off-on-off dead-man pushbutton.
Externally accessible pairing key. Lithium battery, rechargeable directly via ELCA-CLIP USB cable.
MIA is used to remotely control tower cranes, self-erecting cranes, overhead cranes, beam cranes, gantry cranes, jib cranes, quarry machinery, sawing machines, mills, vibrating screens, demolition machines, PLC systems, contactor control systems, and relays.
Available electronics: E
Main options
- Wiring service
- 1-0-1 toggle switch
- Pushbutton
- Key
- Potentiometer for proportional control
- Feedback indication with 4 LEDs
- Display
- Protective cover
Included in the kit
- User manual: Transmitting Unit, Receiving Unit
- Transmitting Unit
- Receiving Unit
- Battery
- ELCA-CLIP USB charging cable
- Shoulder strap
Compatible receiving units
The receiving unit is an integral part of the radio remote control system. Connected to the electrical panel of the machine being controlled, it is activated by a Start command from the transmitter and is then ready to receive commands.
Highlights
PL d CATEGORY 3 E-STOP
Handheld radio remote control with a mushroom-head Stop up to category 3 PL d in accordance with EN ISO 13849-1.
CUSTOMIZABLE
Configurations with up to 23 digital commands (10 two-step pushbuttons, 2 single-step pushbuttons, 1-0-1 toggle switch); Start pushbutton; mushroom-head Stop (up to PL d category 3 EN 13849-1); proportional potentiometer.
INTEGRATED-CHARGING BATTERY
Replaceable Lithium battery, rechargeable by connecting the ELCA-CLIP USB cable directly (original ELCA system with integrated electronics). Compatible with power banks.
RUGGED AND ERGONOMIC
The MIA handheld transmitter withstands impacts and demanding operating conditions: ABS enclosure, pressure-equalization valve, IP65. Optional outer case for additional protection.
IF DESIGN AWARD
In 2017, MIA’s design excellence received the prestigious iF Design Award.
Available actuators
Every ELCA product can be configured to order. Here you can find the available actuators and select them to create the solution best suited to your application.
PL d Stop
Maintained toggle switch
Rotary selector
Momentary toggle switch
Two-step pushbutton
Single-step pushbutton
Potentiometer
LED
Key
Display
Applications
This section lists the main areas of use and compatible machines to help you quickly identify the solution best suited to your operating requirements.
Sectors
Machines
- Industrial conveyors
- Conveyors (quarries)
- Roadside recovery vehicles
- Rescue vehicles
- Roadside assistance trucks
- Tow trucks
- Mobile shops
- Food trucks
- Mobile bottling lines
- Vehicle lifts
- Vehicle transport carts
- Car transporters
- Caravans
- Hook-lift systems
- Container loading and unloading systems
- Mechanical amusement rides
- Amusement rides
- Conveyor belts (vehicle equipment)
- Conveyors (vehicle equipment)
- Covering and uncovering systems
- Process machinery
- Industrial presses
- Automated storage systems
- Automatic packaging machines
- Industrial robots
- Robots
- PLCs (programmable logic controllers)
- Inverters
- Relays
- Contactor control systems
- Machine tools
- Crushers
- Crushers
- Dust suppression cannons
- Misting systems
- Snowmaking guns
- Compactor presses
- Presses
- Scrap presses
- Industrial composters
- Street-cleaning tractors
- Waste crushers
- Waste shredders
- Waste baling presses
- Canal gates
- Sluice gates
- Compactors
- Self-erecting cranes
- Self-erecting tower cranes
- Fast-erecting cranes
- Truck-mounted ladder cranes
- Jib cranes
- Underslung cranes
- Cantilever cranes
- Wall-mounted jib cranes
- Belt conveyors
- Concrete crushers
- Crushers
- Concrete vibrators
- Vibrating equipment
- Conveyor belts (construction)
- Conveyor belts (construction)
- Conveyors (construction)
- Tower cranes
- Overhead cranes
- Bridge cranes
- Overhead traveling cranes
- OHTCs
- Gantry cranes
- Gantry cranes
- Industrial cranes
- Heavy-duty cranes
- Lifting cranes
- Bridge lifting systems
- Overhead traveling cranes
- Hoists
- Winches
- Hand winches
- Forestry winches
- Hoisting reels
- Lifting magnets
- Industrial lifting magnets
- Heavy-duty lifting magnets
- Vacuum lifters
- Lifting clamps
- Vacuum lifting devices
- Material handlers
- Palletizers
- Container-handling cranes
- Winches
- Motorized gangways
- Port cargo-handling vehicles
- Gantry cranes
- Shipyard transporters
No machines are linked to this sector.
Download
Download catalogs and brochures for technical information, features, and presentation materials.
