E MIDI A

Available electronics: E1 - E2 - E29

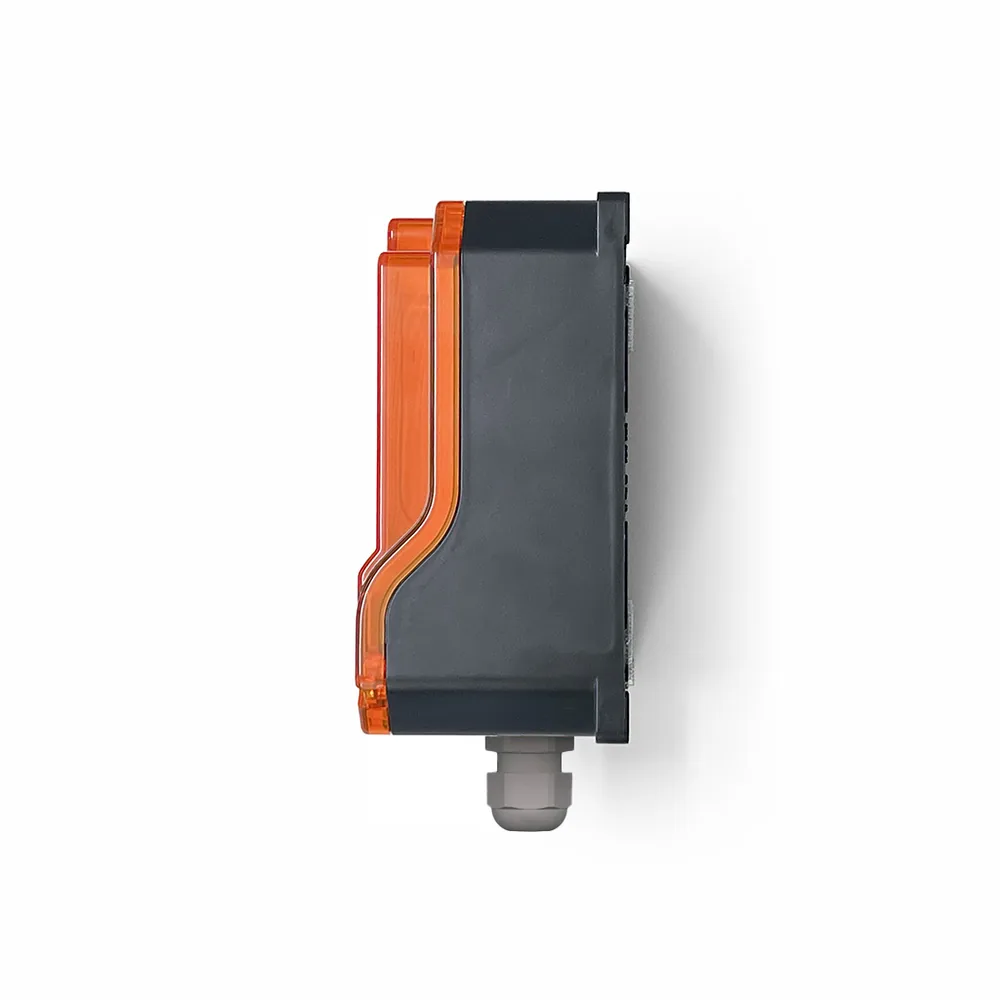

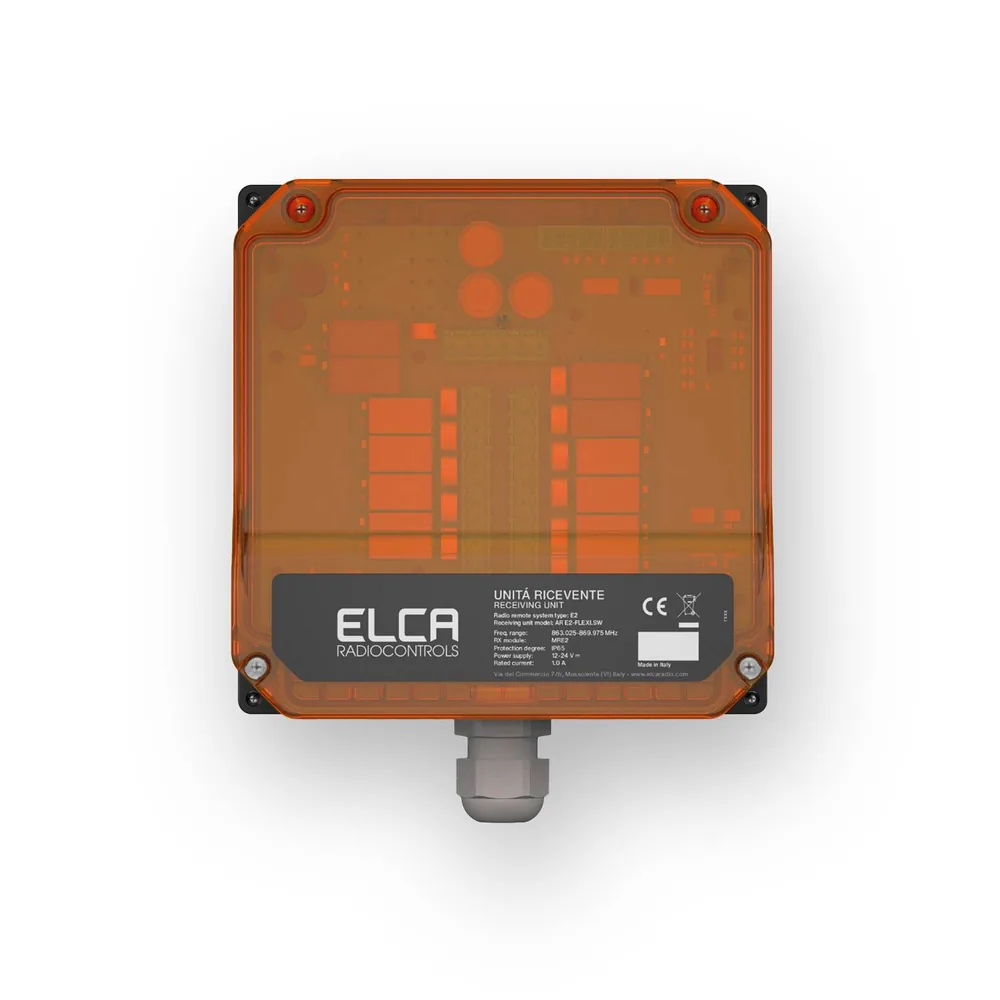

The E MIDI A Receiving Unit is designed for applications where space on the machine or inside the electrical panel is limited. Its rugged enclosure is fully dust-tight and protected against water jets (IP65), making it ideal for demanding indoor and outdoor industrial environments.

It weighs 750 grams and has optimized dimensions of 152x152x75 mm; it incorporates a highly reliable STOP circuit up to PL d in accordance with ISO 13849-1.

The antenna is housed inside the enclosure for a clean design protected from accidental impact; provision is made for connecting an optional external antenna.

The option to install an internal FLASH LED makes this unit ideal for lifting applications that require a visual signal while the equipment is moving.

Main options
  • Power supply: wide range 24-230 Vac;
  • 12 relay command outputs (programmable START);
  • Relay outputs for dedicated SAFETY, STOP1, and STOP2 functions;
  • 4 digital feedback inputs;
  • Integrated FLASH LED (optional);
  • Maximum voltage applied to contacts: 230 Vac [50/60 Hz];
  • Maximum contact rating of command circuits: 10 A;
  • Maximum contact rating of STOP circuit: 4 A;
  • Stop protection (in accordance with ISO 13849-1): up to PL d;
  • Antenna: built in (optional external antenna);
  • Cable-gland outlet, 10-pin / 25-pin connector;
  • Protection rating: IP65;
  • Dimensions: 152x152x75 mm;
  • Weight: 750 g.

Compatible products

This receiving unit can be paired with the ELCA products listed for the same applications to create the control system best suited to the machine.
