MIA
Handheld transmitter

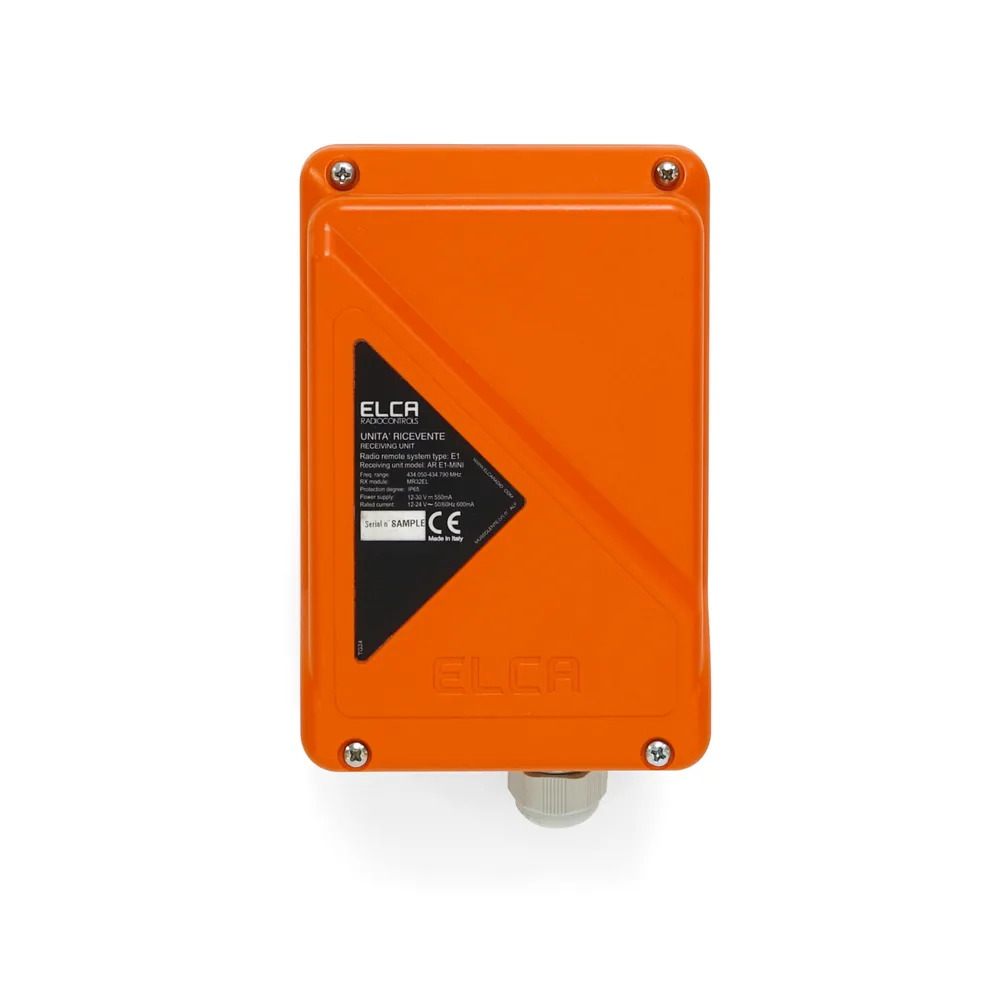

E MINI SW
Available electronics: E1 - E2 - E29
The E MINI SW Receiving Unit is designed for low-voltage DC applications and supports up to 30 Vdc applied to its contacts.
Lightweight (450 grams) and compact (110x165x50 mm), it can be installed in confined spaces.
Operational safety is provided by a highly reliable STOP circuit up to PL d in accordance with ISO 13849-1. The rugged enclosure provides an IP65 protection rating, fully isolating the electronics from dust, moisture, and water jets.
The “MINI AF” version, optimized for forestry applications, is also available.
Main options
- Power supply: 12-24 Vdc;
- Up to 8 relay command outputs;
- Relay outputs for dedicated START, SAFETY, and STOP functions;
- 4 digital feedback inputs;
- Maximum voltage applied to contacts: 30 Vdc;
- Maximum contact rating of command circuits: 10 A;
- Maximum contact rating of STOP circuit: 4 A;
- Stop protection (in accordance with ISO 13849-1): up to PL d;
- Antenna: built in (optional external antenna);
- Cable-gland outlet;
- Protection rating: IP65;
- Dimensions: 110x165x50 mm;
- Weight: 450 g.
Compatible products
This receiving unit can be paired with the ELCA products listed for the same applications to create the control system best suited to the machine.
